Electric Linear Actuator for Healthcare Equipment UA2b

TOMUU 12VDC or 24VDC Electric Linear Actuator for Healthcare Equipment
UA2b is Ball Screw Linear Actuator

Electromechanical Linear Actuator, mainly apply for healthcare equipmentor Medical care equipment, etc.
UA2b is Ball Screw Linear Actuator,Max. load can reach to 12,000N

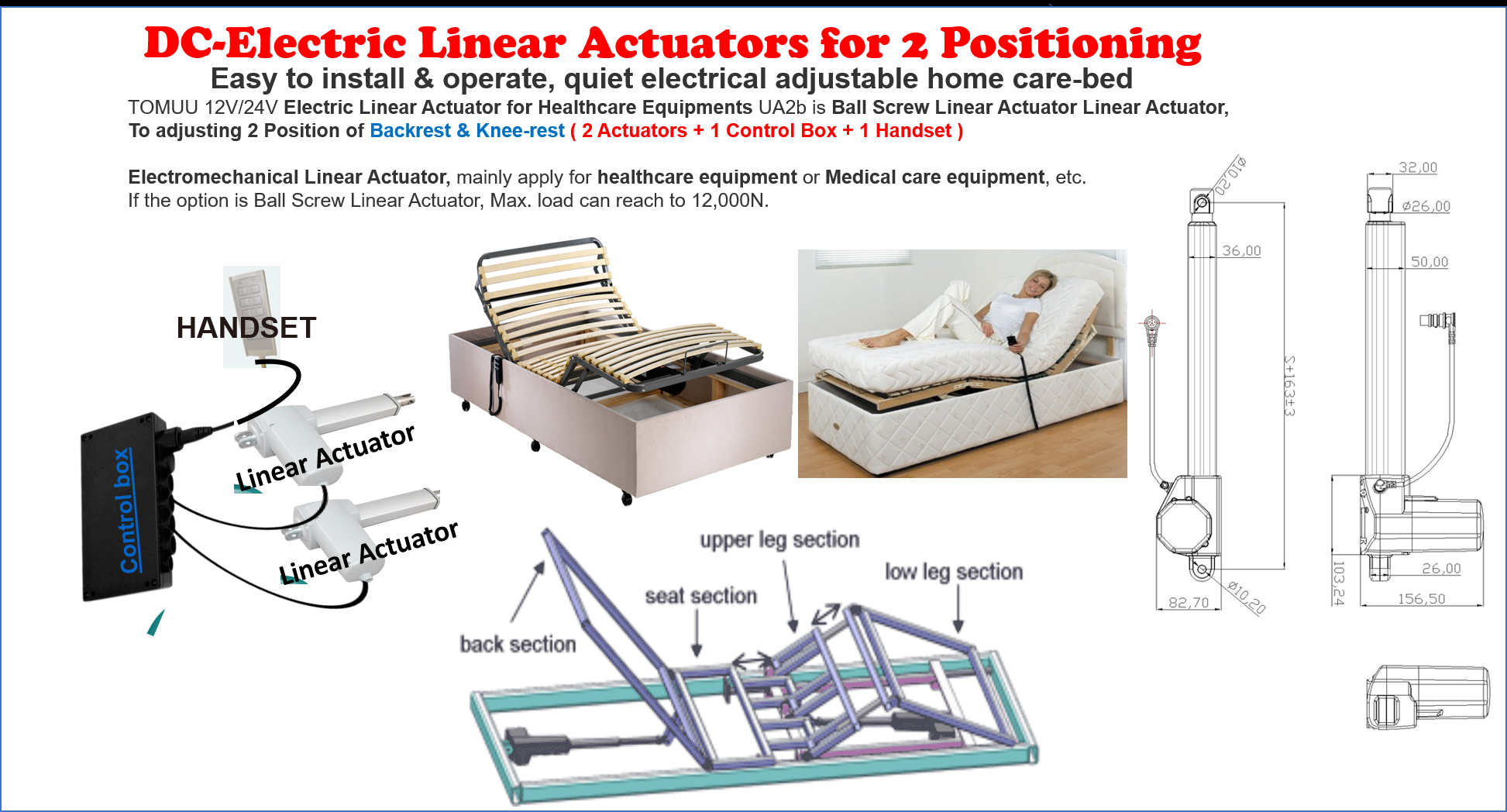

Ranges of applications :
Adjusting position of Beckrest & Kneerest  Position of Beds
1. Electrical Pasien Beds
2. Electrical Homecare Beds



General Features Of UA2b Series：

l  Maximum load( push):     10000N

l  Maximum load(pull)：      6000N/ 8000N & 10.000N

l  Maximum speed：         50mm/s

l  Min Mounting Dimension：Stroke+267mm

l  Built-in end stop switches(not adjustable)

l  Color：                 Black or Grey

l  Protection class：         IP20

l  Duty cycle : 10% or 2 min. continuous use followed by 18 min.

l  Flexible front piston rod eye

l  IEC60601-1, ES60601-1 and RoHS compliant
