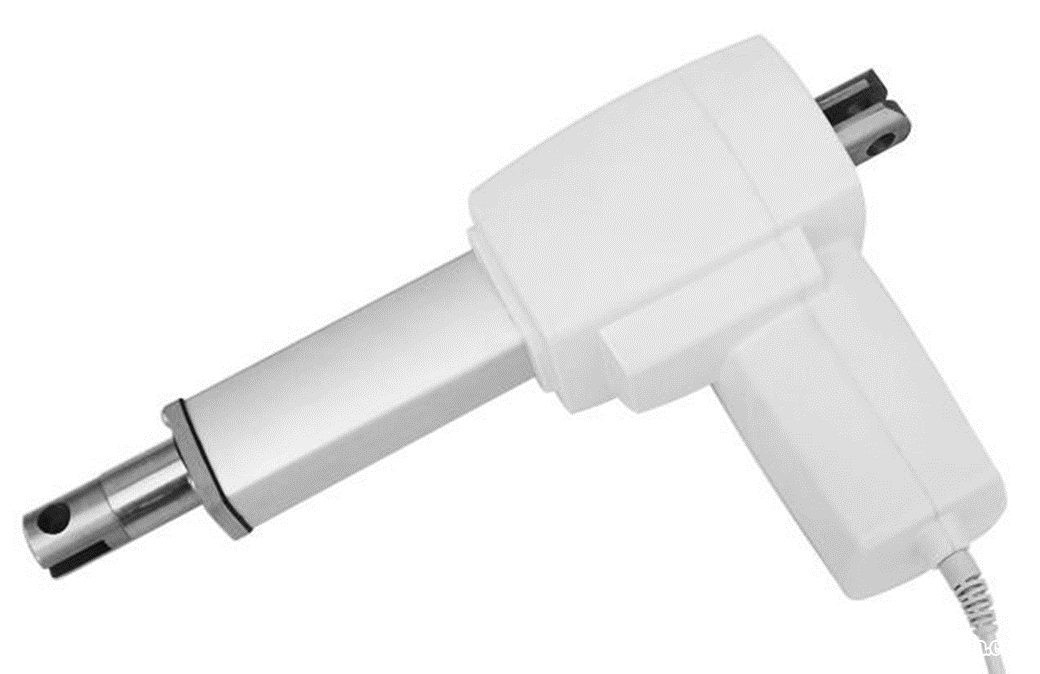

UA-2b SERIES ELECTRIC ACTUATORS
for Healthcare EquipmentUA2b is  Ball Screw Linear Actuator

General Features：

Voltage of motor：         24VDC

Maximum load( push):     12000N

Maximum load(pull) ：      8000N

Maximum speed    ：         20mm/s

Min Mounting Dimension：Stroke+210

Built-in end stop switches (not adjustable)

Color                     ：Black or Grey
Protection class ：IP20
Duty cycle             : 10% or 2 min. Continuous use followed by 18 mm ( not in use )

Flexible front piston rod eye     RoHS compliant

Option Features：

Protection class:     IPX4, IPX6

Safety option：

1. Safety nut
2. Mechanical splines

Special option：

1. Quick retracting
2. Quick release

Position signal: hall sensors

Stroke tube：

1.Stainless steel tube
2.Steel tube with wear-resistant powder painted
3, Aluminium tube with surface handled

Voltage：

1.12VDC
2.36VDC
